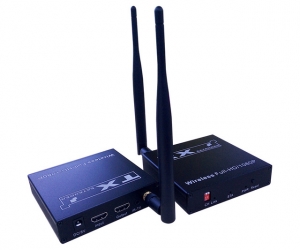

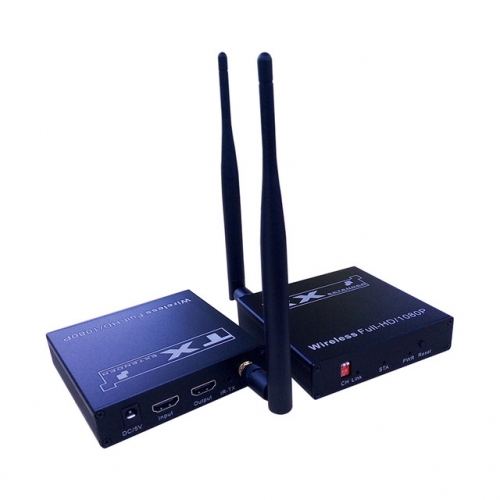

60M HD 1080P HDMI 1.3 Wireless HDMI Extender for HDTV 3D Wifi HDMI Sender Transmitter Receiver up to 60m Support HDCP1.2

Description

This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 5.8GHz band, with very low latency.

It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.

This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.

Features

Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.

Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz

Support IR remote control function to control source device content from long distance

Transmitter have one local loop out.

Low latency <200ms

Effective Range: 60m ( Line of sight )

 No cable between sender (TX) and receiver (RX)

 Easy and clean installation

Plug & Play – full hardware design, no software is required

Note：

Transmission distance will be different due to the environment

Wall, brick or glass will shorten the signal cover range or cause big signal loss

Package list

HDMI transmitter ……………………….……. 1 pcs

HDMI receiver …………………….……………. 1 pcs

Power adapter ……………………………….... 2 pcs

IR TX/RX Cable ……………..………………….. 1 set

User manual …………………………………..… 1 pcs

Installation

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source

3.Connect the HDMI output port of receiver to the display device with HDMI cable

4.IR function---connect the IR TX cable to the HDMI transmitter, connect IR RX cable to the HDMI receiver, and the IR TX must face to the controlled device
