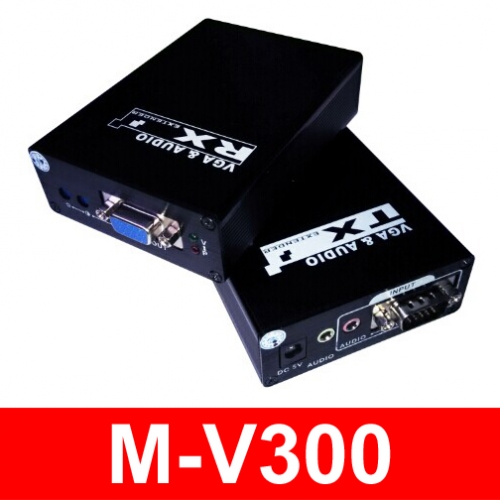

300M VGA UTP Extender with Audio over Cat5e/6
Location: Elephant-Road-Dhaka
Rate this product!
Product Information：
【Description】
M-V300 is a single channel VGA AV signal receiver that transfer signal over CAT5e/6 network cable. It features wide bandwidth, strong integrity, long transmission distance and excellent surge protection. The device is widely used in data control center, conference system, multi-media system and company training etc.
【Features】
● Features: Transmitting AV signal by one single CAT5/5e/6 network cable;
● Transmission: 300m Maximum ;
● Compatibility: Support VGA, SVGA, XGA, SXGA, UXGA, WXGA, etc;
● Performance: Transferring AV signal in real time, no delay or asynchronous;
● Protection: Strong surge protection and anti-interference. High Stability;
● Operation: No driver or internet setup request, easy for installation;
● Outlook: Delicate Design, supporting MIT creative frame.
【Application】
【Specification】
|
Power |
Power Supply |
Adaptive Power |
|
|
Power Range |
5V DC |
||
|
Consumption |
<3W |
||
|
Connector |
Video Output Connenctor |
Female VGA Port |
|
|
Video Signal Processing Bandwidth |
350MHz(-3dB) |
||
|
Audio Output Connector |
3.5mm Stereo Port |
||
|
Audio Format |
Dual Track Composite Audio |
||
|
Audio Bandwidth |
50Hz-20kHz |
||
|
Transmission Port |
RJ45 |
||
|
Maximum Resolution |
Distance and related Resolution |
75m |
300m |
|
1920×1080 |
1600×1000 |
||
|
Status Indicator |
Signal LED |
Audio :Yellow Video:Green |
|
|
Power LED |
Red |
||
|
Adjusting Mode |
Adjusting Knob |
Brightness and contrast |
|
|
Protection Level |
Communication Port Protection |
1KV Per:IEC61000-4-5 |
|
|
ESD |
1a contact discharge level 3 1b air discharge level 3 Per:IEC61000-4-2 |
||
|
Environment |
Operation Temperature |
0-55°C |
|
|
Storage Temperature |
-20-70°C |
||
|
Humidity |
0～95% |
||
|
Physical Properties |
Size |
110mm*78mm*26mm(With Port length) |
|
|
Material |
Aluminum |
||
|
Color |
Black |
||
|
Packing |
size |
250mm*200mm*70mm |
|
|
N.W |
0.8KG |
||
|
Stability |
MTBF |
>10000Hr |
|
【Applications】
·Security Monitoring System
·Automatic control system
·Information Display System
·Flat multi-media advertising project
