1-CH Component Video/Stereo Audio Balun YPbPr/Component Video/Stereo Audio Balun
Location: Elephant-Road-Dhaka
Rate this product!
YPbPr/Component Video/Stereo Audio Balun

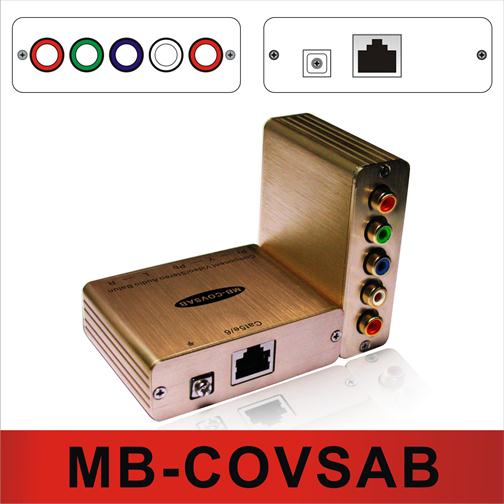

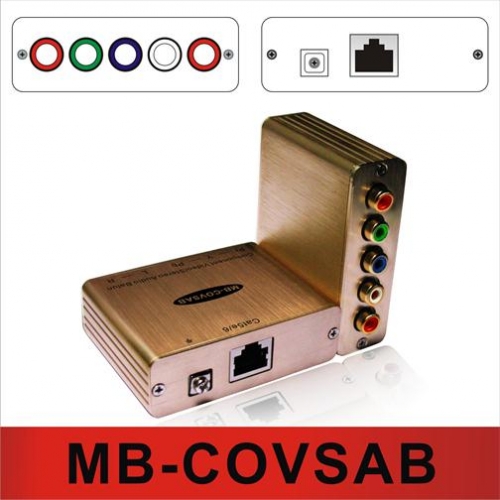

Model: MB-COVSAB The Component Video/Stereo Audio Balun Supports 720p/1080i/p up to 500 ft (152m) via Cat5E/6 Supports true Hi-Fi left/right analog stereo audio up to 2,000 ft (667m) via Cat5E/6 More cost efficient cabling Quicker moves, adds and changes
*Cost-efficient cabling
*Quicker moves, adds and changes
Product Information：
Overview
The Component Video/Stereo Audio Balun (COVSAB) allows one component video (YPbPr or RGB) signal and one Stereo Audio channel to be transmitted via one Cat5e/6 twisted pair cable for more cost-efficient cabling. Used in pairs or in conjunction with the COVSAB, the Component Video/Stereo Audio Balun supports high definition resolution and true left/right stereo audio for hi-fidelity commercial and residential AV applications and so on.
Applications
Rental & staging, venues Camcorder connections Mobile video production Podium presentation systems.
Features & Benefits
Supports 720p/1080i/p up to 500 ft (152m) via Cat5E/6
Supports true Hi-Fi left/right analog stereo audio up to 2,000 ft (667m) via Cat5E/6
More cost efficient cabling
Quicker moves, adds and changes
Quick Setup Guide:
Plug the RCA connectors of the transmit Balun into the Video and Audio outputs of the source component you wish to transmit. Plug the Video and Audio connectors from the receive Balun into your desired input component. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination.

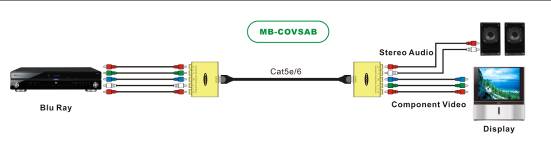

Typical Application
Specifications:
|
Environment |
Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Line level Stereo Audio. |
|
Devices |
DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,amplifiers, switchers, home theatre & other equipment supporting HDTV component video and/or stereo audio. |
|
Transmission |
Transparent to the user. |
|
Bandwidth |
Video (Y): DC to 60 MHz, 3 dB roll off Analog audio: 20 Hz to 20 kHz |
|
Maximum Input |
Video: 1.1Vp-p, Audio : 1.1Vp-p |
|
Insertion Loss per Pair (Y channel) |
0.1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range |
|
Insertion Loss per Pair (Audio) |
Less than 2 dB over the frequency range per pair of baluns |
|
THD |
Less than 0.01% at 1 kHz |
|
Return Loss (Y channel) |
Greater than 15 dB over the frequency range |
|
Common Mode Rejection Ratio (Y channel) |
-55 dB at 0.1 MHz Gradually increasing to -20 dB at 60 MHz |
|
Max. Distance Color via Cat 5E/6 UTP/STP Cable |
Video: 480i/p: 1,000 ft (305 m). 720p and 1080i/p: 500 ft (152 m) Stereo Audio: 2,000 ft (667m) |
|
Cable:Cat 5E/6 UTP/STP |
24 AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft Attenuation: 6.6 dB/1,000 ft at 1 MHz |
|
Cable: Coax |
Impedance: 75 ohms at 1 MHz |
|
Connectors |
Three RCA-F connectors: Green (Y), Blue (Pb), Red (Pr) One RCA-F connector for analog audio RJ45 for twisted pair |
|
Pin Configuration Reverse polarity sensitive |
Red (Pr): Pins 7(R) & 8(T) Green (Y): Pins 4(R) &5(T) Blue (Pb):Pins 1(R) & 2(T) analog Audio: Pins 3(R) & 6(T) |
|
Temperature |
Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing |
|
Enclosure |
Aluminum alloy |
|
Dimensions(packaging) |
155mm*80mm*30mm (including one pair of Balun) |
|
Weight(packaging) |
250g |
