1-CH Composite Video-Stereo Hi-Fi Audio/ IR Balun Composite Video/Stereo Hi-Fi Audio ,IR Balun
Location: Elephant-Road-Dhaka
Rate this product!

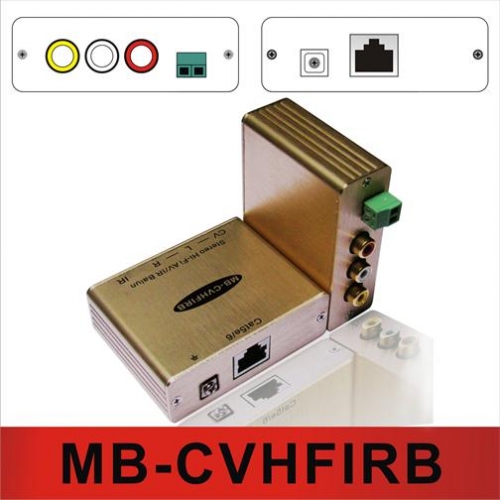

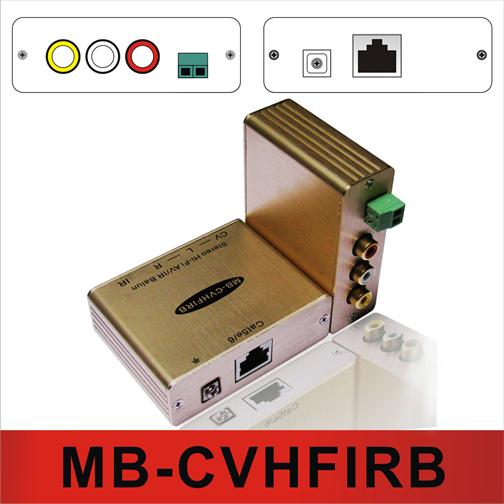

Composite Video/Stereo Hi-Fi Audio ,IR Balun
Model : MB-CVHFIRB
*Composite Video up to 1,000 ft (305m) Via Cat5e/6
*Audio up to 3,250 ft (1,000m) via Cat5e/6
*20 Hz to 20 kHz Audio bandwidth
*Built-in TVS Protection
*Cost-efficient cabling
*Quicker moves, adds and changes
Product Information：
Overview
The Composite Video/Stereo Hi-Fi Audio , IR Balun(MB-CVHFIRB) that allows
One Composite Video , one Stereo Hi-Fi Audio,one IR emitter Signal to be
transmitted Via Cat5/5e/6 Cable , up to 1000ft( 305m ) in a point -to- point
connection .it is built in surge suppressor to protect Video, Audio IR equipment
against damaging voltage spikes .its integrated ground loop isolation prevents
annoying "hum-bars" common noise with long distance transmission in the
Audio. The product is designed for classroom video distribution, commercial
and home audio / video systems ,hospital video training, video conferencing ,
and video kiosks Boardroom systems and so on.
Used in pairs, the Video/Audio ,IR Balun eliminates costly and bulky coaxial
cable , allowing Video / Audio equipment to be connected or moved within a
structured cabling environment.
Applications
classroom video distribution, commercial and
home audio/video systems, hospital video
training, video conferencing, and video kiosks
Boardroom systems, classroom training,
auditoriums, custom home installations and
intercom systems.
Features & Benefits
※ 20 Hz to 20 KHz audio bandwidth
※Composite Video Up to 1000 feet (305m) via Cat5/5e/6
※ Stereo Hi-Fi Audio Up to 3250 ft (1,000m) via Cat5/5e/6
※ Built-in TVS Protection
※ IR 2-wire emitter pass-thru on Third twisted pair
※ Quicker moves, adds and changes
Quick Setup Guide
Plug One side of the Composite Video(yellow)’s RCA ,left ( White ) and right(Red)’s
RCA Connectors,IR Cable into the Composite Video and Stereo Audio ,IR Output
of the transmit Balun in Order , Other side into output of the source component,
plug the Composite Video ,left and right RCA ,IR connectors from the receive Balun
into your desired input component. Insert the CAT5 cable into both ends of the Baluns.
You may use standard EIA 568A/B Termination.
Specifications
|
Product Name |
Composite video /Stereo Hi-Fi Audio ,IR Balun |
|
|
Devices |
DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment. |
|
|
Transmission |
Transparent to the user. |
|
|
Composite video |
Audio |
|
|
Bandwidth |
Video: 6 MHz, 3 dB roll off |
20 Hz to 20 KHz over the distance range |
|
Maximum Input |
1.1Vp-p |
1.1Vp-p |
|
Impedance |
75 ohms |
600 ohms min |
|
Insertion Loss |
Less than 2 dB per pair over the frequency range from DC to 6 MHz |
Less than 2 dB per pair over the frequency range |
|
Return Loss |
Better than 15 dB over the frequency range |
Better than 15 dB over the frequency range |
|
Common Mode Rejection Ratio |
Greater than 40 dB over the frequency range |
Greater than 40 dB over the frequency range |
|
Max. Distance Color via |
1000 ft (305 m) |
3,250 ft (1,000 m) |
|
Pin Configuration (RJ45) |
Video: Pins 4(R) &5(T) IR: Pins 3(R) &6(T) |
Audio 1: Pins 1(R) & 2(T) |
|
Cable: Cat 5E/6 UTP/STP |
24 AWG or lower solid copper twisted pair wire |
|
|
Connectors |
Three RCA-F connectors: Video (yellow) & Stereo Audio (red, white) IR emitter Connector: One 2-pole block terminal One RJ45 for Cat 5e/6
|
|
|
Temperature |
Operating: 0° to 55°C |
|
|
Enclosure |
Aluminum alloy |
|
|
Dimensions(packaging) |
7.5*26*151mm (including one pair of Balun) |
|
|
Weight(packaging) |
225g |
|
