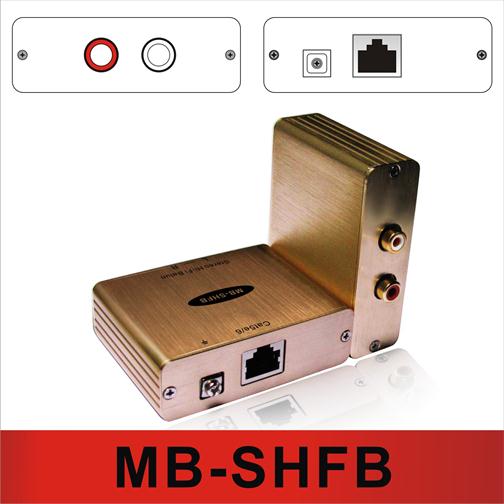

Stereo HI-FI Audio Balun

Model:MB-SHFB

*Stereo Audio up to 3250ft(1000m) Via Cat5/5e/6

*Full ground-loop immunity in Audio

*Built in TVS for surge protection

*Audio Inputs support line level unbalanced Audio

*Quicker moves, adds and changes

Product Information：

Overview
The  Stereo  Hi - Fi (  MB-SHFB  )   Audio   Balun    allows  one  Analog  Stereo Hi-Fi  Audio to  be  transmitted  Via  Cat5/5e/6  Cable   ,  up  to  3250ft( 1000m )  in  a  point - to -  point connection .it  is built  in surge suppressor  to  protect Audio equipment against   damaging voltage   spikes  . its   integrated   ground  loop  isolation  prevents    annoying   "hum-bars" common noise with long distance installations.The product is designed for audio applications where full-range ,  hi-fidelity  audio  frequency response is required.Used in pairs, the Stereo Hi-Fi Audio Balun  eliminates  costly  and bulky  coaxial cable,allowing audio equipment to be  connected or moved within a structured cabling environment.

Applications

Boardroom systems, classroom training, Auditoriums, custom home installations and intercom systems.

Features & Benefits

※ 1-CH Stereo HI-FI Audio Long Distance Transmission

※ 20 Hz to 20 KHz bandwidth

※ Up to 3250ft (1,000m) via Cat5/5e/6

※ Cost-efficient cabling

※ Quicker moves, adds and changes

Quick Setup Guide

Plug the Left(White) and Right(Red) Stereo Audio RCA Connectors of  the transmission Balun into the HI-FI Audio output of the source component ,  plug the  Left(White) and Right(Red)RCA connectors from  the  Receive  Balun into your desired input component. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B Termination.

Specifications

Typical Application
