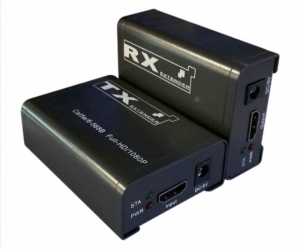

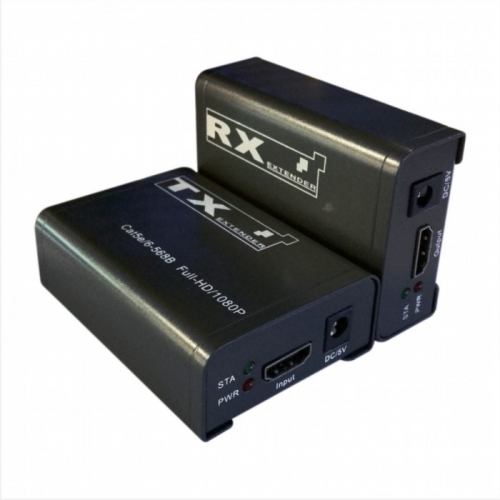

HDMI Extender over single CAT6 60M
Location: Elephant-Road-Dhaka
Rate this product!
Product Information：
HDMI Extender over single CAT6 60M
1、 Introduction
Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2、FEATURES
Ø Support HDMI 1.3 protocol
Ø HDCP 1.2 protocol compliant
Ø Support 3D
Ø Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Ø Signal transmission: Single cat-5e or cat-6(recommended) cable up to 60 meters
Ø Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Ø Audio format support : DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD.
Ø Support up to 5 meters AWG26 cable length between extender and source & sink device
Ø No loss of quality
3、SPECIFICATIONS
|
Length of CAT-6 cable between Rx and TX |
Up to 60 meters |
|
HDMI Input |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support audio format input |
DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
HDMI Output |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support audio format output |
DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max transmission bandwidth |
5.1Gbps |
|
Input Video signal |
0.5~1.5Volts p-p |
|
Output DDC signal |
5Volts p-p (TTL) |
|
Input/output HDMI1.3 cable distance |
≤15m AWG26 HDMI 1.3 standard cable |
|
Max working current |
400mA |
|
Power adapter format |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A |
|
Operating Temperature range |
(-15 to +55°C) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension (L x W x H) |
82*57*27(mm) |
|
Weight(RX & TX) |
640g |

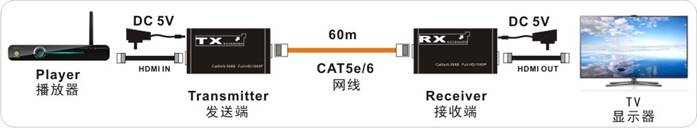

4、 CONNECTING AND OPERATING
1、 Connect one HDMI 1.3 cable up to 15meters between source device and TX Extender.
2、 Connect one HDMI 1.3 cable up to 15meters between sink device and RX Extender
3、 Connect single cat-6(recommended) cables up to 60 meters instead of HDMI cable between TX and RX Extender
4 、Connect 5V power supply to the HDMI CAT6 RX&TX Extender
