HDMI Extender over Fiber Optic up to 20KM
Location: Elephant-Road-Dhaka
Rate this product!
Fiber Optic HDMI Extender which overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over Long distances, up to 120KM. The Device accepts HDMI audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p @ 60Hz at 24-bits)
Theis Device can also transfer RS485 / 422 or RS232 in both directions, allows you to connect serial devices such as supervisory keyboard and barcode scanners, etc.

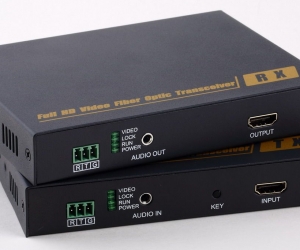

Fiber Optic HDMI Extender
If distance transmission over 40KM (131200 FT),
| Model | Description | Maximum Extension |
|---|---|---|
| OPR-HF511 S05 | Multimode Fiber, HDMI Video Resolutions up to 1080p @ 60hz Without RS485 / 422 or RS223 |
500M (1640 FT) |
| OPR-HF511 S10 | Singlemode Simplex Fiber, HDMI Video Resolutions up to 1080p @ 60hz Without RS485 / 422 or RS223 |
10KM (32800 FT) |
| OPR-HF511 S20 | 20KM (65600 FT) | |
| OPR-HF511 S40 | 40KM (131200 FT) | |
| OPR-HF511 S05D | Multimode Fiber, HDMI Video Resolutions up to 1080p @ 60hz Supports RS485 422 or RS223 |
500M (1640 FT) |
| OPR-HF511 S10D | Singlemode Fiber, HDMI Video Resolutions up to 1080p @ 60hz with Supports RS485 / 422 or RS223 |
10KM (32800 FT) |
| OPR-HF511 S20D | 20KM (65600 FT) | |
| OPR-HF511 S40D | 40KM (131200 FT) |
Features
- Extends the transmission range of HDMI, RS485/422 or RS232 signals using one fiber optic cable
- Very long distance transmission–up to 120km
- HDMI (3D, Deep Color), HDCP compatible–signaling rates up to 3.125 Gbits
- Superior video quality–up to 1080p @ 60Hz
- Uses one fiber optic cable to connect the local and remote units
- Supports wide screen formats
- Built-in 4KV ESD protection
- Features RS485/422 RS232 serial port for connecting peripherals such as supervisory keyboard, barcode scanners, etc.
- Free of cross interference resulted from FM/PM/AM optical transmitter and receiver
- Lossless video regeneration & relaying supported
- Super optic dynamic range and free of adjustment prior to use
- Surface coating technique
- Adopt Fiber optic WDM / CWDM / DWDM technique
- Industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments
- Supports Wall-mounted or 2URack-mountable
- Supports Hot plug & play
- Supports Customization and OEM
Tech Specs
| No. of Video | 1 Channel | |
|---|---|---|
| Video Bandwidth | TMDS MAX 10.8GHz | |
| HDMI version | HDMI1.3 and backward | |
| Color depth | TMDS MAX 48bit/px | |
| Supported Video Formats | MAX 1080P@1920x1080/60Hz | |
| Differential Gain | <1% (typical) | |
| Differential Phase |
<0.6° (typical)"1" | |
| Video Interface | HDMI A Type | |
| Optical Fiber | Optical Port: LC (optional) Single-Mode:0～120KM Wavelength: 1310/1550nm |
|
Options |
||
| Data Channel | RS485 (reverse) /422/RS232 and NRA/RZI/Manchester supported Physical Interfaces: Standard industrial terminal Operating Mode: Simplex Transfer Rate 0 to 400Kbps Error Rate < 10-9 |
|

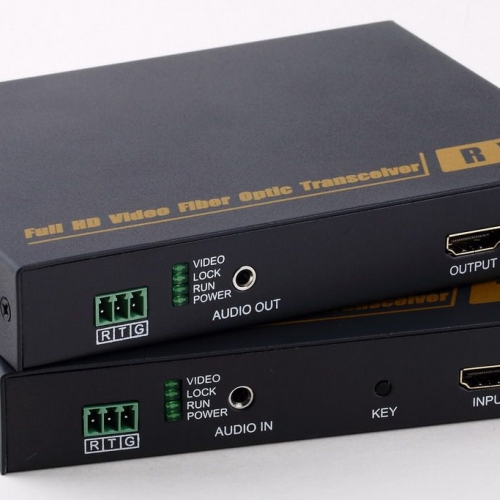

Diagram for OPR-HF511 Fiber Optic HDMI Extender
TX
RX
Operating Voltage: DC5V 2A
Operating Environment
Operating Temperature: -40℃to+85℃
Storage Temperature: -55℃ to +85℃
Humidity: 0 to 95%condensation free
Application
Intelligent transport monitoring system, safety and security monitoring system, campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.); military monitoring (warehouse, guard and confidentiality, etc.) TV program transfer system, etc.
