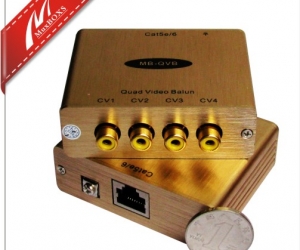

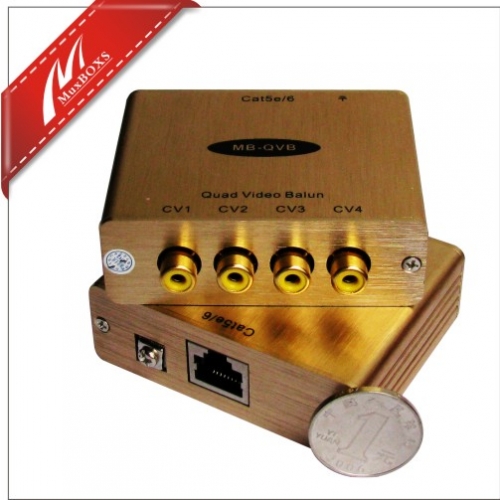

Quad Composite Video Balun 4-CH Composite Video Balun
Location: Elephant-Road-Dhaka
Rate this product!
Overview
The Quad Video Balun allows up to four composite video signals to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection.
Used in pairs, the Quad Video Balun allowing video equipment to be connected via space-efficient and cost-effective Category 5/6 twisted pair cable. The Quad Video Balun supports NTSC, PAL, SECAM video formats for classroom video,
commercial and Home video systems, hospital video training,video conferencing, podium presentation Systems and video kiosks applications and so on.
Applications
Security video, classroom video, commercial and home audio/video systems, hospital video training, video conferencing, podium presentation systems and video kiosks.
Features & Benefits
supports NTSC, PAL, SECAM video
Composite video up to 2,200 ft (670m) via Cat5e/6
Cost-efficient cabling
Quicker moves, adds and changes
Quick Setup Guide:
Plug the RCA connectors of the transmit Balun into the Video outputs of the source component you wish to transmit. Plug the Video connectors from the receive Balun into your desired input component. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination.

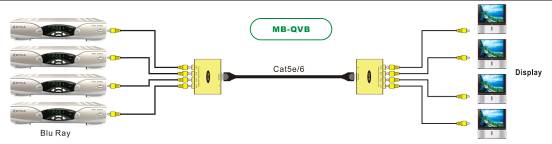

Typical Application
Specifications:
|
Environment |
Composite video. NTSC, PAL, SECAM. |
|
Devices |
DVD players, cable boxes, video distribution amplifiers, security video cameras, digital video recorders and other composite video equipment. |
|
Transmission
|
Transparent to the user. |
|
Bandwidth |
0-6 MHz, 3 dB roll off |
|
Maximum Input |
1.1Vp-p |
|
Impedance |
75 ohms |
|
Insertion Loss |
Less than 3 dB per pair over the frequency range from DC to 6MHz |
|
Return Loss |
Greater than 15 dB over the frequency range from DC to 6 MHz |
|
Common Mode Rejection Ratio
|
Greater than 40 dB over the frequency range |
|
Max. Distance Color via Cat 5E/6 UTP/STP Cable |
2,200 ft (670 m) |
|
Pin Configuration (RJ45) |
Video 1: Pins 7 (R) & 8 (T) Video 2. Pins 3 (R) & 6 (T) Video 3: Pins 4 (R) & 5 (T) Video 4: Pins 1 (R) & 2 (T) |
|
Cable: Cat 5E/6 UTP/STP |
24 AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft Attenuation: 6.6 dB/1,000 ft at 1 MHz |
|
Connectors |
Four RCA-F connectors for Composite video RJ45 for twisted pair |
|
Temperature |
Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing |
|
Enclosure |
Aluminum alloy |
|
Dimensions(packaging) |
155mm*80mm*30mm (including one pair of Balun) |
|
Weight(packaging) |
240g |
