VGA Extender 200m,VGA USB KVM Extender over LAN cat5/cat 6 UTP Extender Up to 660ft For Keyboard Mouse Control

VGA Extender 200m,VGA USB KVM Extender over LAN cat5/cat 6 UTP Extender Up to 660ft For Keyboard Mouse Control

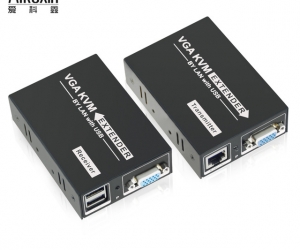

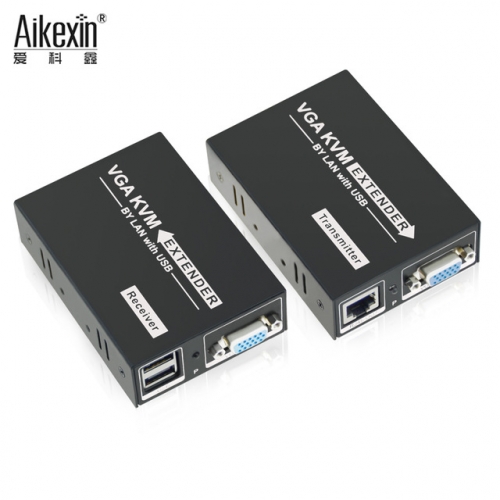

Aikexin VGA Extender 200m,VGA USB KVM Extender over LAN cat5/cat 6 UTP Extender Up to 660ft For Keyboard Mouse Control

Description :

The  VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and keyboard/mouse signal and external stereo audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Aikexin VGA Extender 200m,VGA USB KVM Extender over LAN cat5/cat 6 UTP Extender Up to 660ft For Keyboard Mouse Control

Feature:

• Transmits VGA video and audio signals up to 200m/660ft over a single CAT6 cable.

• Support video resolution up to 1920*1080@60HZ.

• Compliance with VGA standard.

• Support keyboard and mouse signal transmission.

• High compatibility, can auto-match source and display device.

• Built-in automatic adjustment system, make the image smooth, clear and stable.

• Built-in ESD protection system.

• Simple to install, plug and play

Aikexin VGA Extender 200m,VGA USB KVM Extender over LAN cat5/cat 6 UTP Extender Up to 660ft For Keyboard Mouse Control

Note:  USB port :

1.It  can transmit HID signal,It is unicast!It only support one to one application.

2.It can connect USB port to Scanner,Touch screen,keyboard and mouse.

3.If you want to connect to other device,please contact me!We will give you the best reply timely!

STEYR HDMI KVM Extender 120m Over Single Cat 5/5E/6/7 Ethernet Cable Signal Extension Up to 365Ft Ultra HD 1080p@60Hz

Specification:

Video Standards                              VGA

Maximum Pixel Clock                      380MHz
Maximum Data Rate                        6.75Gbps
Resolution  Max:                               1920X1080@60Hz
Connector                                          VGA
USB Interface                                    USB,HID signal
UTP Interface                                     IEEE 568B
Transmission Distance                    Cat5e  Max: 150m
                                                         Cat6   Max: 200m
Other Power Supply                          The power adapter: DC 5V
Power Dissipation                            Max: 4W
Temperature Operating:                  -5 ~ +70
Humidity Operating:                         5% ~ 90%
Dimension                                        95x65x26mm
The Warranty                                    1 Year Free Warranty

Aikexin 200m USB KVM VGA Extender 660ft,VGA UTP Extender over LAN cat5/cat 6 extensor support Keyboard Mouse,VGA Video Extender

Packing List:

VGA KVM Transmitter*1
VGA KVM Receiver *1
Power supply *2
English Manual*1
