HDMI Extender USB+ HDMI Extender over Cat6 100m
Location: Elephant-Road-Dhaka
Rate this product!
High Quality 1080p RX TX HDMI Extender KVM HDMI Extender over Cat6 120m
 |
The 120M HDMI KVM Many to Many Over IP Extender with IR (HKE12MMA10) , Support USB keyboard and mouse data, IR signal transmitted over a LAN (Local Area Network). Supports input resolution up to 1920*1080P Full HD. According to 1000M IGMP network switch, source content can be transmitted from several transmitters(Up to 16 transmitters) to several receivers (Up to 253 receivers) over LAN, and the transmitter can be controlled by either of the receivers in the same local area network by IR or USB keyboard and mouse. |
Application:
This product can be used on remote DVR for Security System, servers in data centre and monitor room.
Features
- Extends HDMI USB and IR over a network switch or a direct connection with Cat5E/6 UTP cable up to 120 metres
- Supports resolution up to 1080p Full HD
- HDMI bandwidth up to 2.25Gbps data rate
- Support 8KV ESD protection
- Support TMDS equalization and enhancement
- By transmitting keyboard and mouse Datas via LAN, it is easy to control PC or other media players remotely
- Also it is available to send data from up to 16 transmitters to 253 receivers by 1000M IGMP network switch
- Support pass through infrared remote control signal
- Support fiber-optic converter to extend transmission distance up to 20KM
- HDCP 1.3 compliant & HDMI 1.3 compliant
Specification
|
HKE12MMA10 |
High Quality 1080p RX TX HDMI Extender KVM HDMI Extender over Cat6 120m |
|
Functionality: |
|
|
Over IP |
Yes |
|
IR pass though |
Yes |
|
Technical |
|
|
Resolution |
480i/480p/720p/1080i/1080p@60Hz |
|
HDMI version |
1.3 |
|
HDCP version |
1.3 |
|
Bandwidth 2.25Gbps |
|
|
Input |
TX*: 1*HDMI type A |
|
RX*: 1* RJ45, 2* USB type A, 1* 3.5mm AUX (For IR receiver) |
|
|
Output |
TX: 1* RJ45, 1* 3.5mm AUX (For IR transmitter) |
|
1* USB type B |
|
|
RX: 1* HDMI type A |
|
|
ESD protection |
Human body model - ±8kV (Air-gap discharge) |
|
Mechanical: |
|
|
Chasing material |
Aluminum Alloy |
|
Product Dimensions |
RX: 93 mm (W) x 90 mm (D) x 30 (H) mm |
|
TX: 93 mm (W) x 90 mm (D) x 30 (H) mm |
|
|
Item Weight |
450g |
|
Power supply |
DC 5V 1A |
|
Operating/Storage temperature |
0 to 70 degree/-40 to 85 degree |
|
Operating Humidity |
10 to 90% RH |
|
*TX: Transmitter |
|
|
*RX: Receiver |
|

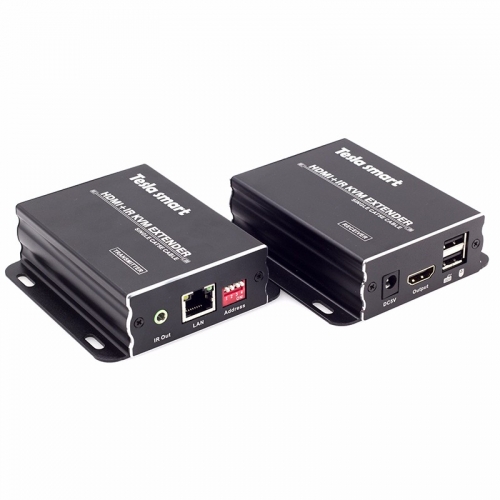

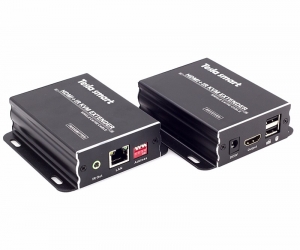

Detailed Images
Paking List
High Quality 1080p RX TX HDMI Extender KVM HDMI Extender over Cat6 120m
HDMI w/KVM Extender Transmitter: 1pc
HDMI w/KVM Extender Receiver: 1pc
IR Transmitter: 1pc
IR Receiver: 1pc
DC 5V 1A Power Supply: 2pcs
Operation Manual: 1pc
