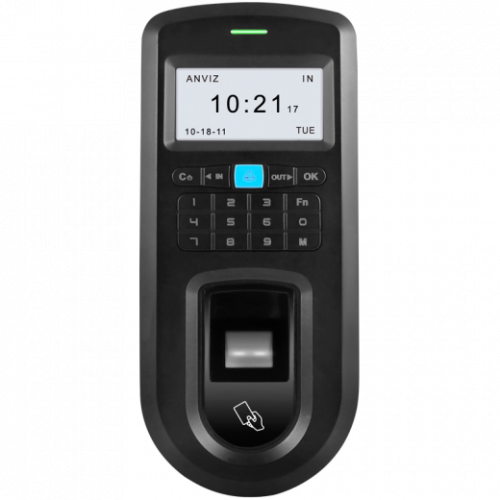

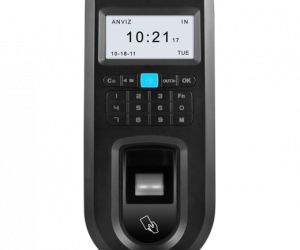

VF30 PoE Fingerprint / RFID Access Control in Bangladesh
Location: Elephant-Road-Dhaka
Rate this product!
F30 is professional access control products designed for small to medium enterprises requirement of security.
integrate fingerprint identification, RFID, PoE TCP/IP communcaiton, time attendance and access control functions, with fashion and elegant appearance andreliable structure.
With standalone access control software – Crosschex, VF30 offer group access control for high security level. The best combination of Function and Price.
Feature
> Anviz technology with optical waterproof fingerprint sensor. Scratch-proof, unbreakable and durable.
> Well accept all kinds of fingerprints
> BioNano core algorithm platform of high performance and reliability
> New version algorithm with improved performance on wet and dry fingerprints.
> Support identification from different angles
> Support multiple languages display. Suitable for local market.
> White backlit keypad with 10 numeric keys and 7 function keys
> Standard EM Card, Optional Mifare Card
> RS485, Mini USB Slave, PoE-TCP/IP, Wiegand In/Out
> Direct lock control to open door, door open sensor.
> Optional SC011 or any other standard access controller for separate type secure access control system
> Unique infrared auto wakeup design
> Time zone and group access control, realtime data transfer monitor
> Standard 2000 fingerprints and 50000 records
> Wall mounted, combine 2-in-1 function for access control and time attendance
Parameter
| Scan Area | 22mm*18mm |
| Resolution | 500 DPI |
| LCD | 128*64 White LCD |
| Capacity | Max 2,000 |
| Template | Max 2,000 |
| Log Capacity | Max 50,000 |
| Identification Mode | FP, Card, ID+FP, ID+PW, PW+Card, FP+Card |
| Identification Time | <0.5 Sec |
| FRR | 0.001% |
| FAR | 0.00001% |
| Communication Interface | RS485,Mini USB Slave,POE- TCP/IP, Wiegand In/Out |
| Card Reader Module | Standard EM Card, Optional Mifare Card |
| Fingerprint Image Display | Yes |
| Self-defined Status | 8 |
| Workcode | 6 digit |
| Short Message | 50 |
| Scheduled Bell | 30 |
| Relay | DC 12V, Relay Output(COM, NO, NC) |
| Access Groups & Time Schedules | 16 Groups, 32 Time Zones |
| Door Sensor | Yes |
| Tamper Alarm | Yes |
| Operating Voltage | DC 12V |
| Size | 80(w)*180(h)*40(d)mm |
| Temperature | -10℃~40℃ |
| IP Level | IP53(Optional Waterproof Cover) |
| Certificates | CE, FCC, RoSH, EN300330 |
Demokit
VF30-ID Standalone Access Control
VF30-ID is the world’s best-selling fingerprint and RFID access control. Its fashionable, streamlined design, and powerful functions make it globally popular. All these marketing materials are mainly for our authorized global partners' marketing development activity.
Models included:
