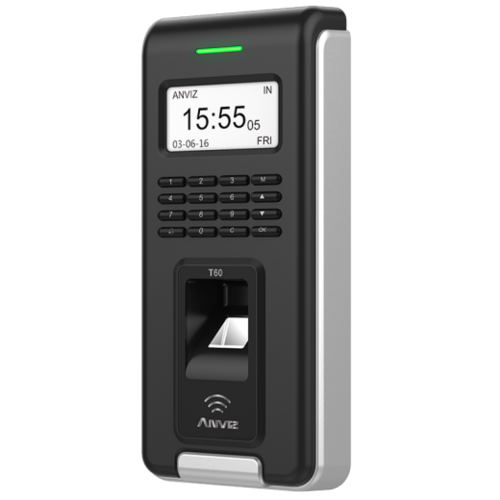

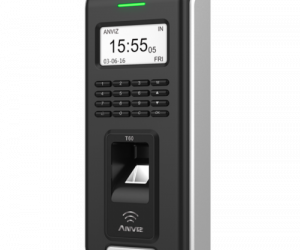

T60 Fingerprint Access Control in Bangladesh
Location: Elephant-Road-Dhaka
Rate this product!
T60 is a professional fingerprint access control system which fully integrates LCD, keypad, optical fingerprint sensor, card reader and professional access control components. The very compact design makes it suitable for installation on doorframes. T60 can be used for both simple access control and separate type secure access control. In addition, T60 has Wiegand input and output, direct lock control, alarm output and doorbell output for a complete access control solution. USB plug and play, RS485, TCP/IP and GPRS communication is available for all kinds of installation sites. Optional Mifare card reader is specially designed for the existing card users and higher security level. T60 can work perfectly to meet different demands for access control.
Feature
> World leading brand. Korean industrial design. Elegant white LCD
> New generation fully sealed, waterproof and dustproof fingerprint sensor
> BioNano core fingerprint algorithm for T&A and access control,
> High performance and reliability
> Professional fingerprint strengthen membrane. Improved performance to dry or wet fingers.
> Stand-alone without being connected with computer
> Standard fingerprint capacity 2000. Standard record capacity 50000
> Multiple identification method: FP,ID+PW,ID+FP,ID+Card,Card
> Standard RFID, optional Mifare reader
> Standard Mini USB, RS485 and TCP/IP networking communication, optional GPRS
> Can directly drive the electric lock to open the door.
> Optional SC011 or access controller for separate type secure access control
> Tamper alarm output to connect with alarm equipment outside and output the alarm card No. to controller by Wiegand26
> Support time zone, group access control and realtime data monitor, easy-to-use and use-friendly software
> Wall mounted, combine 2-in-1 function for time attendance and access control
Parameter
| Processor | TI high speed CPU |
| Algorithm | BioNANO V10 |
| Sensor | AFOS300 Optical Sensor |
| Scan Area | 22mm*18mm |
| Resolution | 500 DPI |
| LCD | 128*64 White LCD |
| Capacity | Max 2,000 Users |
| Template | Max 2,000 Templates |
| Log Capacity | Max 50,000 Logs |
| Identification Mode | FP, Card, ID+FP, ID+PW, PW+Card, FP+Card |
| Identification Time | <0.5 Sec |
| FRR | 0.001% |
| FAR | 0.00001% |
| Communication Interface | RS485, USB plug &play, TCP/IP, GPRS,Wiegand In&Out |
| Card Reader Module | Standard 125KHz EM, Optional Mifare Card |
| Name Display | yes |
| Fingerprint Image Display | yes |
| Voice Prompt | yes |
| Self-defined Status | 8 |
| Realtime Transfer | yes |
| Workcode | 6-digit word code |
| Short Message | yes |
| Scheduled Bell | yes |
| Daylight saving | yes |
| Relay | 2 Relays |
| Wiegand | Input and Output |
| Access Groups & Time Schedules | 15 Groups, 32 Time Zones |
| Door Sensor | yes |
| Tamper Alarm | Yes |
| Operating Voltage | DC 12V |
| Size | 90(h)*200(w)*35(d)mm |
| Temperature | -10℃~40℃ |
| IP Level | IP53(Optional Waterproof Cover) |
| Certificates | FCC, CE |
Demokit
T60 Standalone Access Control+T5S-ID Reader
The T60 + T5S-ID is a complete access control system which read both fingerprint and RFID card. This system can realize (anti-pass back function).All these marketing materials are mainly for our authorized global partners' marketing development activity.
Models included:
