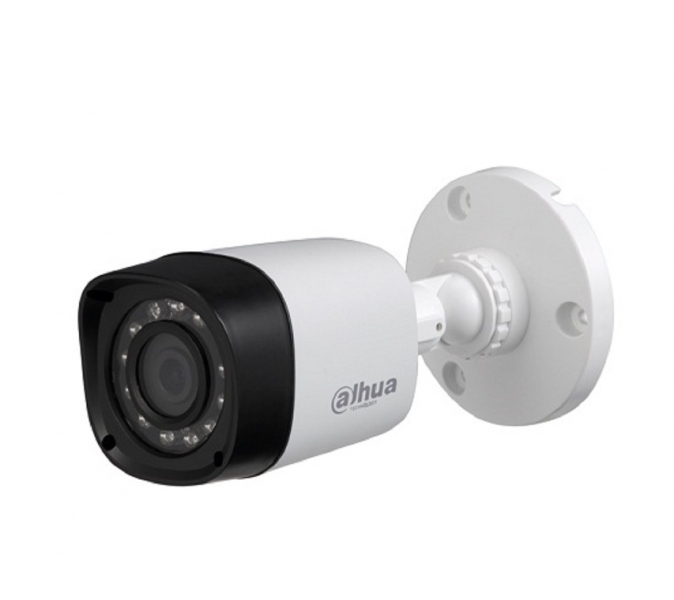

1MP HDCVI IR Bullet Camera

HAC-HFW1000R 1MP HDCVI IR Bullet Camera * The parameters and datasheets below can only be applied to 1000-S3 series > Max 30fps@720P > HD and SD output switchable > 3.6mm fixed lens (2.8mm optional) > Max. IR length 20m, Smart IR > IP67, DC12V Camera Image Sensor 1/4" CMOS Effective Pixels 1280(H)×720(V), 1MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.05Lux/F2.0, 30IRE, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 20m (66feet) IR On/Off Control Auto / Manual IR LEDs 12 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (2.8mm Optional) Max Aperture F2.0 Angle of View H: 60° (83.4°) Focus Control N/A Close Focus Distance 600mm (500mm) 23.6'' (19.69'') Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° Video Resolution 720P (1280×720) Frame Rate 25/30fps@720P Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual DORI Distance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. DORI Definition Distance Detect 25px/m (8px/ft) 2.8mm: 38m(126ft) 3.6mm: 48m(157ft) Observe 63px/m (19px/ft) 2.8mm: 15m(50ft) 3.6mm: 19m(63ft) Recognize 125px/m (38px/ft) 2.8mm: 8m(25ft) 3.6mm: 10m(31ft) Identify 250px/m (76px/ft) 2.8mm: 4m(13ft) 3.6mm: 5m(16ft) Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (U
