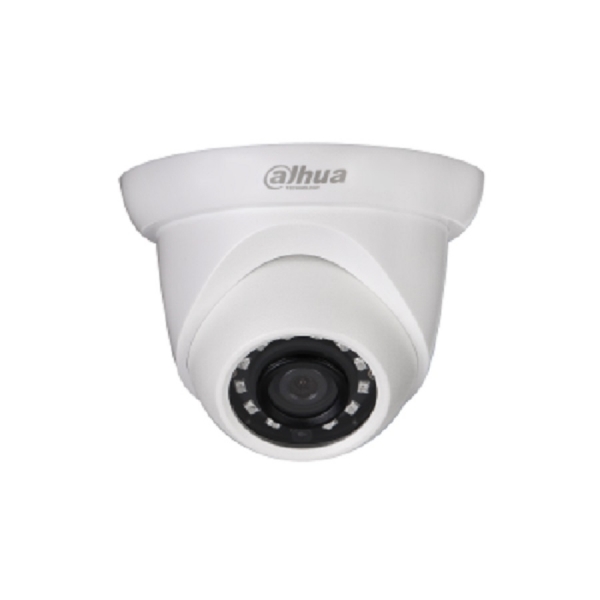

HAC-HDW1000R 1MP HDCVI IR Eyeball Camera * The parameters and datasheets below can only be applied to 1000-S3 series > Max 30fps@720P > HD and SD output switchable > 3.6mm fixed lens (2.8mm optional) > Max. IR length 20m, Smart IR > DC12V Camera Image Sensor 1/4" CMOS Effective Pixels 1280(H)×720(V), 1MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.05Lux/F2.0, 30IRE, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 20m (66feet) IR On/Off Control Auto / Manual IR LEDs 12 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (2.8mm Optional) Max Aperture F2.0 Angle of View H: 60° (83.4°) Focus Control N/A Close Focus Distance 600mm (500mm) 23.6'' (19.69'') Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° Video Resolution 720P (1280×720) Frame Rate 25/30fps@720P Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual
