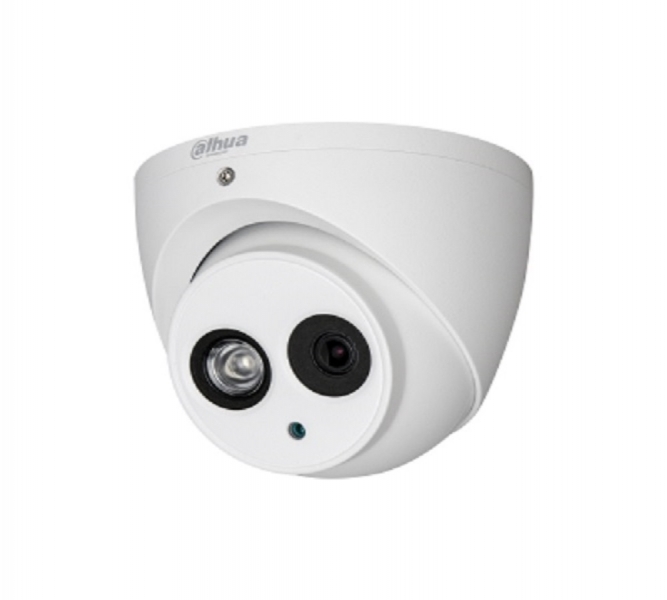

HAC-HDW-1200E 2MP HDCVI IR EYEBALL CAMERA

Features- HAC-HDW-1200E HAC-HDW-1200E 2MP HDCVI IR Eyeball Camera Max 30fps@1080P > HD and SD output switchable > 3.6mm fixed lens (6mm optional) > Max. IR length 50m, Smart IR > IP67, DC12V HAC-HDW-1200E Camera Specification Image Sensor 1/2.7″ CMOS Effective Pixels 1920(H)×1080(V), 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.02Lux/F2.0, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 50m (164feet) IR On/Off Control Auto / Manual IR LEDs 1 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (6mm Optional) Max Aperture F2.0 Angle of View H: 89.9°(59.4°) Focus Control N/A Close Focus Distance 600mm (1800mm) 23.62” (70.87”) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° Video Resolution 1080P (1920×1080) Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Interface Audio Interface N/A Eelectrical Power Supply 12V DC ±25% Power Consumption Max 3.2W (12V DC, IR on) Environmental Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Ingress Protection &Vandal Resistance IP67 Construction Casing Aluminium Dimensions Φ106mm×93.7mm (Φ4.17″×3.69″) Net Weight 0.44kg (0.97lb) Gross Weight 0.58kg (1.28lb)
