DHI-XVR-4108HS | DAHUA 8 CHANNEL PENTA BRID

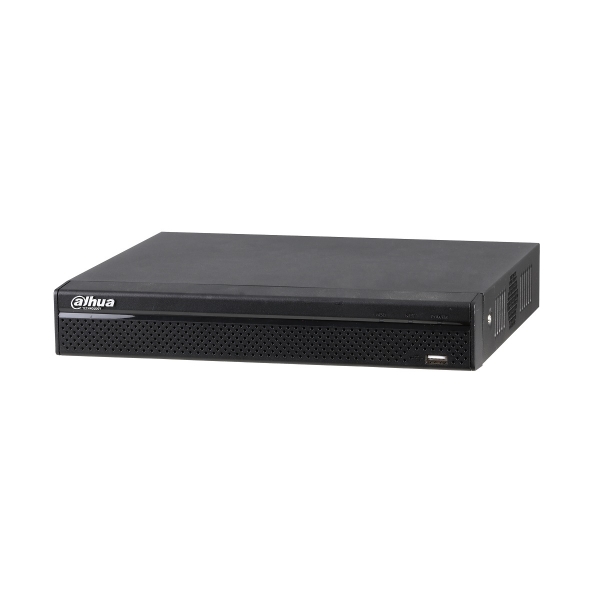

Description DHI-XVR-4108HS – 8 Channel Penta-brid HD Digital Video Recorder DHI-XVR-4108HS Support HDCVI/CVBS/HDTVI/AHD video inputs >Max 5/10/18 channels IP camera inputs,each channel up to 5MP(2MP for 4ch) >Max 20/40/72Mbps Incoming Bandwidth >Long transmission distance over coax cable >Support 1 SATA HDD, up to 6TB >Embedded processor DHI-XVR-4108HS Specifications System Main Processor Embedded Processor Operating System Embedded LINUX Display Interface 1 HDMI ,1 VGA Resolution 1920×1080, 1280×1024, 1280×720, 1024×768 Multi-screen Display 4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering Alarm input N/A Relay Output N/A Tracking Trigger Event N/A Playback and Backup Playback 4CH: 1/4 8CH: 1/4/9
