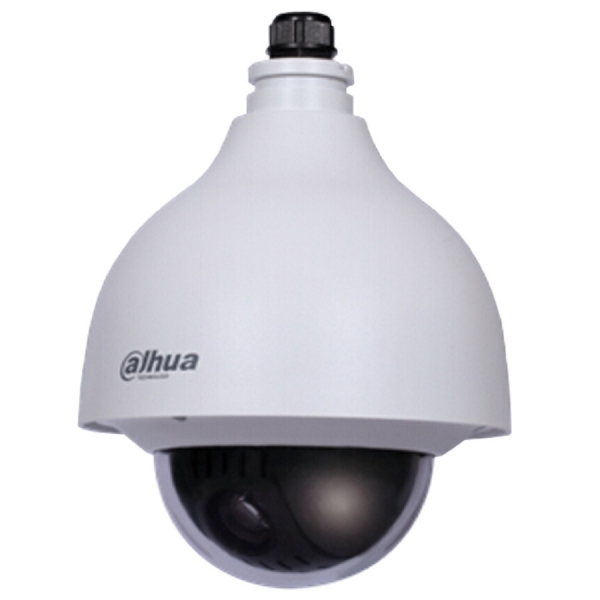

>Powerful 12x optical zoom >Support dual-streams encoding >Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution >WDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC >Max 300°/s pan speed, 360° continuous pan rotation >Up to 300 presets, 5 auto scan, 8 tour, 5 pattern >Built-in 2/1 alarm in/out >Support intelligent 3D positioning with DH-SD protocol >IP66, IK10(optional), POE+ Model DH-SD40212T-HN Camera Image Sensor 1/2.8" CMOS Effective Pixels 1944(H) x 1092(V), 2 Megapixels Horizontal Resolution >1000TVL Scanning System Progressive Electronic Shutter Speed 1/3s ~1/30,000s Min. Illumination Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6 S/N Ratio More than 55dB Camera Features Day/Night Auto(ICR) / Color / B/W Backlight Compensation BLC / HLC / WDR (120dB) White Balance Auto, ATW, Indoor, Outdoor, Manual Gain Control Auto / Manual Noise Reduction 2D / 3D Privacy Masking Up to 24 areas Digital Zoom 16x Lens Focal Length 5.1 mm~61.2mm (12x Optical zoom) Max Aperture F1.6~ F3.0 Focus Control Auto / Manual FOV-H H: 59.3° ~ 5.2° Close Focus Distance 100mm~1000mm PTZ Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° Manual Control Speed Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s Preset Speed Pan: 300°/s; Tilt:200°/s Preset 300(DH-SD) PTZ Mode 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan Speed Setup Human-oriented focal length/ speed adaptation Power up Action Auto restore to previous PTZ and lens status after power failure Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period Video Compression H.264 / MJPEG Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) Sub Stream 1 D1/CIF(1 ~ 25/30fps) Sub Stream 2 720P/ D1/ CIF (1 ~ 25/30fps) Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps Audio Compression G.711a / G.711u (32kbps) / PCM (128kbp
