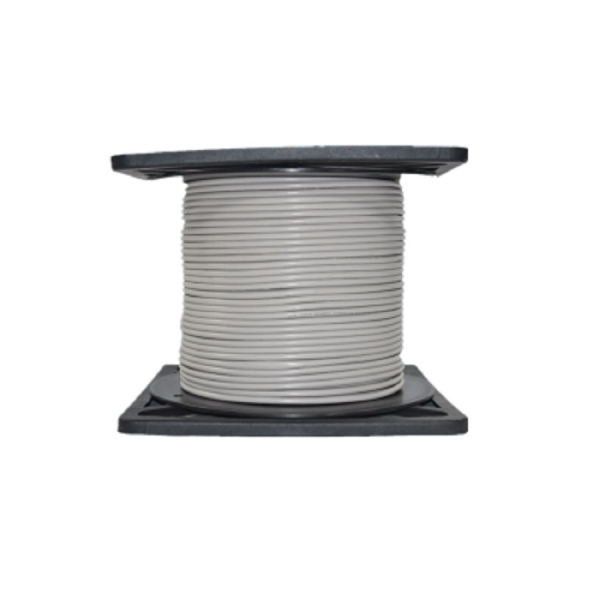

Dahua UTP CAT6 CABLE PFM921

PFM921 UTP CAT6 Cable >Bare stranded copper conductor >305m UTP CAT6 Model PFM921 Conductor Material Bare copper(BC) Composition 1/0.56 Wire gauge 23AWG*4P Insulation Material HDPE Min. average thickness 0.2mm Diameter 1.0+/-0.05mm Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown Lay of twisted conductors 160mm Jacket Material PVC(65P) Min. average thickness 0.65mm Diameter 6.5+/-0.1mm Color Gray and orange are optional Length 305m Max. DC resistance of single conductor 6.58Ω/100m Max. unblance rate of line pairs' direct current resistance 2.5% Min. insulation resistance 5000MΩ•Km Max. mutual capacitance 5.6NF/100m Max. attenuation 19.8(dB/100m, 100MHz) General Rated voltage 300V Bandwidth 250MHz Carried standard TIA/EIA-568B Working temperature Packaging length 305m trolley case packaging Weight(with packaging) 13.0Kg Packaging dimension 335*265*350mm
