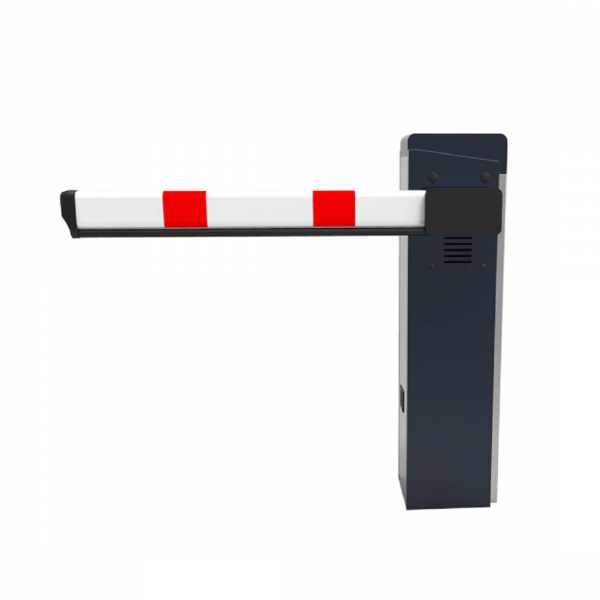

Barrier gate PB1000

Compact design, convenient for packing and lowering delivery cost; ZK designed rolling pressure spring technology, extending product life; Boom can be raised and lowered smoothly and steadily; Outer case and interior can be flexibly separated, convenient for maintenance and customization; Simple installation – just fix the barrier gate on floor and connect it to electricity. ??Technical Specifications?? Model No. PB1010L/R PB1030L/R PB1060L/R Lane Width 3M 4M, up to 4.8M with telescopic boom 5M, up to 5.8M with telescopic boom Opening / Closing Time: 1.8S 3S 6S Supply Voltage: 110V AC or 220V AC 110V AC or 220V AC 110V AC or 220V AC Power Consumption: Max. 200W 200W 200W Frequency: 50-60Hz 50-60Hz 50-60Hz Cabinet Material: Powder Coated Steel Powder Coated Steel Boom Material: Aluminum Alloy Base Frame Cast Iron: Cast Iron Cast Iron Temperature Range: -20°C~+60°C -20°C~+60°C -20°C~+60°C Humidity Range: ?90% ?90% ?90% Ingress Protection: IP54 IP54 IP54 Housing Dimensions: (W x D x H) 240 x 250 x 980mm 240 x 250 x 980mm 240 x 250 x 980mm Packing Dimensions: (W x D x H) 410 x 390 x 1170mm 410 x 390 x 1170mm 410 x 390 x 1250mm Net Weight (Without Boom): 48KG 48KG 48KG Gross Weight (Without Boom): 62KG 62KG 62KG
