Description

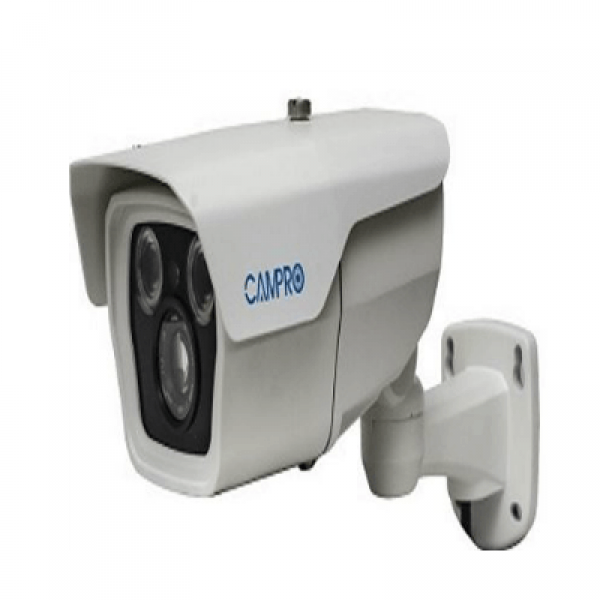

CB-WD200P
Compression Technology H.264 Main Profile @Level 3
Frame Rate PAL: 1-25fps, NTSC: 1-30fps
Video Protocol TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, RTP, and RTSP
CPU Hi3516C + SONY IMX 322
Camera Access 10 Users
Bit Rate 32Kbps ~ 8Mpbs, Support CBR / VBR
Effective Pixels 1920*1080 (25fps) / 1280*720 (25fps) / D1
Electronics Shutter Auto / 1/25S – 1/50,000S adjustable
Day / Night Auto / dual IR-Cut filter
White Balance Auto
Image Controls Bright, Sharpness, Contrast, Saturation
Privacy Mask Up to 4 Areas
Audio (Optional)
SNR More than 48 dB
Alarm (Optional)
Image Sensor 1/2.9? SONY IMX322
Picture Resolution 1080P: 1920*1080, 720P: 1280*720, D1: 640*480
Minimum Illumination 0.1 Lux / F1.2
Lens 2.8 – 12.0mm 2.0 Megapixel ICR Lens
View Angle H: 95°- 28°
IR Led 2 x 42 MIL Array IR Led
IR Range 50M
Onvif Onvif Ver. 2.2
Smart Phone iPhone, Android
Browser IE6.0 ~ IE11 or later, Chrome, Firefox, Sarari
Alarm E-mail, Explorer, Software
Storage SD Slot Optional UP to 32GB (Optional)
LED Display Power, link, LAN
LAN Ports 10/100 BASE-T, RJ45, 1ea
Operation Temp. / Humidity -15°C ~ 60? / within 95% RH
Power Consumption <10W
Power Supply DC12V 1A / POE (IEEE802.3af), (Optional)
Connectors RJ45 for IP Connection
Case Metal, Waterproof, Indoor & Outdoor
Dimenstion 210(L) x 110 (W) x 95 (H) mm / 1.3KG
Certification CE / FCC / RoHS
Campro CB-WD200P Bangladesh
