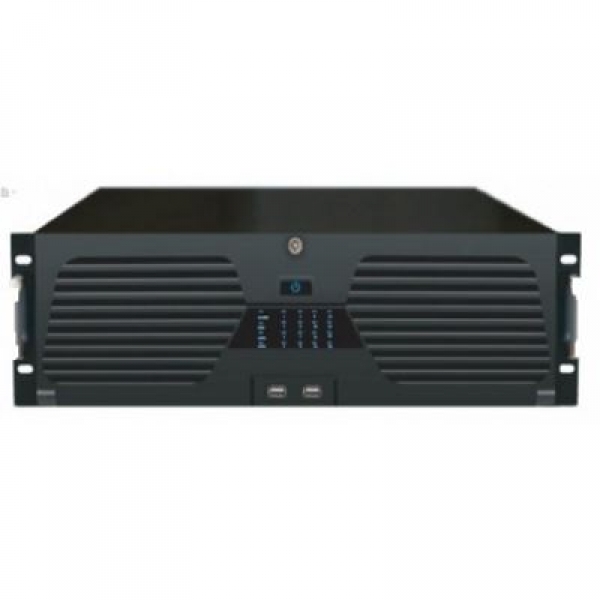

Campro CB-NVR-98064 Professional 64CH NVR

CB-NVR-98064 Channel & Compression 64CH H.264 System Processor Intel J1900 System Memory 4GB DDR3 System Embedded Linux IPC Input 64CH x 720P@25fps 64CH x 960P@25fps 32CH x 1080P@25fps Audio Input 1CH Intercom + 64CH (Network) Audio output 1CH x BNC (Line out, 2Vpp, 300ohms) Audio Rate 64Kbps Audio Compression G.711A CVBS Output 1CH x BNC (1.0Vp-p, 75ohms) VGA Output 1920×1080/ 1280×1024 / 1280×720 / 1024×768 / 800×600 HDMI Output 3840 x 2160 / 1920×1080/ 1280×1024 / 1280×720 / 1024×768 / 800×600 Image Quality Adjustable Encoding Quality, Variable Code Stream, Fixed Code Stream Protocol Supported CAMPRO protocol / ONVIF / RTSP Dual Stream Support Main Stream 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF Frame Rate D1(2Mbps), 720P(4Mbps), 1080P(8Mbps) Recording Mode Manual / Auto / Motion Detection / Stop Playback Mode 16CH x 1080P@25fps Trigger Event Recording / PTZ / Tour / E-Mail Motion Detection Area 396 Area (22×18) for Each Channel Alarm Input / Output 16CH Input / 4CH Output Snap Shot Support JPEG format Backup Mode USB / HDD / Network / Mobile HDD Network Port RJ45 10M / 100M / 1000M Ethernet USB Port 2 x USB 2.0 P2P / Cloud Storage Support DDNS Built in Free DDNS 3G Dongle Support Network Protocol TCP / IP, UDP, HTTP, RTP / RTSP Network DDNS / PPPOE / DHCP / SMTP / SNTP / FTP / UPnP / P2P / 3G Remote Operation Monitoring, PTZ Control, Playback, System Setting, File Download, Log Information Smart Phone iPhone, iPad, Android HDD 16 x 6TB + 1 x E-SATA HDD Management HDD Faulty Alarm, Raid, HDD Hibernation RS-485 / RS-232 1CH / 1CH Key Panel Supported Operation Temp. -10? ~ 55? Humidity 10~90% Power Consumption <30W (HDD not included) Power Supply AC 110-240V Dimension / Weight 437(L) x 483(W) x 143(H) mm / 18.0kgs Certification CE / FCC / RoHS
