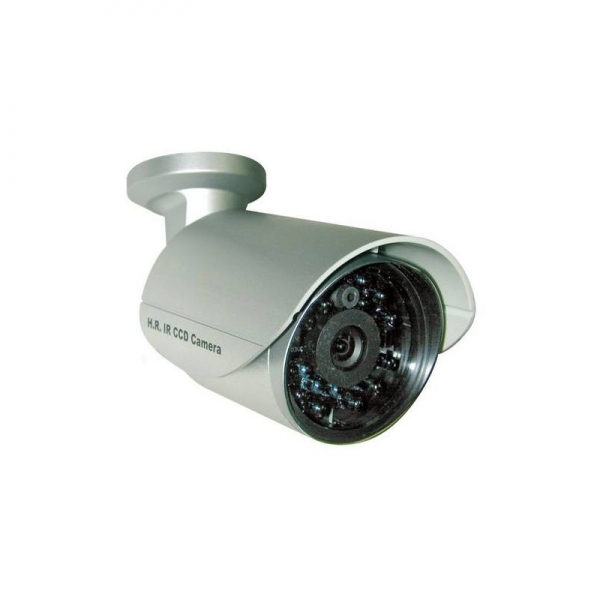

Pick up Element: 1/3? H.R. color CCD image sensor
Number of Pixel: 771(H) x 492(V)/ 753(H) x 582(V)
Resolution: 600 TV lines
Min. Illumination: 0.1Lux / F2.0, 0Lux (IR ON)
IR LED: 21 units
Effective Range: Up to 15 Meters
S/N Ratio: More than 48dB (AGC off)
Electronic Shutter: 1/60 (1/50) to 1/100,000 sec.
Lens: f3.6mm / F2.0
Lens Angle: 92.6°
Iris Mode: AES
White Balance: ATW
Video Output: 1.0 Vp-p composite, 75O
Power Source: (±10%) DC12V
Current Consumption: (±10%) 90mA (IR OFF), 280mA (IR ON)
Dimensions (mm): 133(L) x 74(W) x 94(H)
IP Rating: IP67
WARRANTY: ONE YEAR
