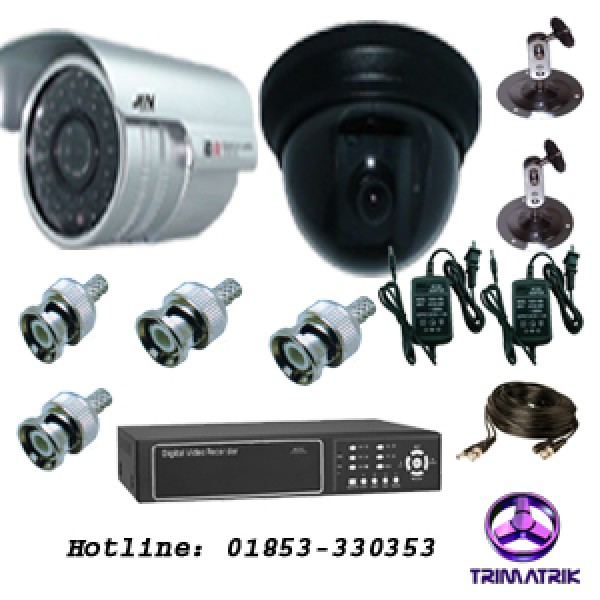

Dome & Night Vision CCTV Camera Package

** CCTV Jin Camera =1ps
** CCTV Avtech Camera =1ps

***HDD 500GB = 1Ps
** Standalone DVR 4 channel = 1ps
***VNC with Connector= 4Ps
** Stand = 2ps
** Adapter = 2ps
** Other Accessories
** Installation Charge Applicable

CCTV Description:
Jin 2332 Night Vision:
Model: JN-2332
Pickup device: 1/3" SONY, 1/4" SHARP
Number of pixels: PAL: 500(H)*582(V) , NTSC: 510(H)*492(V)
Horizontal resolution: 420 TVL
Scanning System: NTSC/PAL
Minimum illumination: 0.1LUX/F1.2 (LED on)
Backlight compensation: Auto
Electronic shutter: 1/50(1/60)~1/100,000sec
White balance: Auto
S/N ratio: =48dB
Gamma correction: =0.15
Operation temperature: -20? - +60? RH95% Max
Sync.system: internal
Video output: 1.0Vp-p 75O
Power supply: DC12V----1A
IR distance: 15M
Number of IR LED: 24pcs
Dimensions(mm): 9.5 x6 x 5.5cm (L x W x H)
N.W: 197g

Avtech CCTV 132ZDP Dome CCTV:
Pick up Element: 1/3" Color CCD image sensor,
Number of Pixel: 512 (H) x 492 (V) 512 (H) x 582 (V),
Resolution: 420TV lines, Min.illumination: 0.4 Lux /F2.0,
S/N Ratio (Signal to Noise): More than 48dB (AGC off),
Electronic Shutter: 1/60 (1/50) to 1/100,000sec,
Lens Mount: C/CS mount Changeable, Lens:f3.6mm /F2.0,
Lens Angle: 92.6, Iris mode: AES (Automatic Electronic Shuter),
Automatic Gain Control: Auto, Video output: 1.0VP-P Composite, 750BNC,
White Balance: ATW / HOLD, Power Source : DC12V,
Current Consumption: 110mA 10%,
Dimension (mm): 100 x 60(H), Gross Weight:203.5gr,
Warranty: One Year

DVR Description:
4Ch. H.264 Network DVR.
These DVRs use H.264 video compression technology,
which highly improves video quality for live and network recording.
The file size is minimized for longest recording time.
Live display, record, playback, backup and network operation are allowed at the same time by lower bit rate,
which is required for fastest network transfer.

***Home Delivery Facility***
