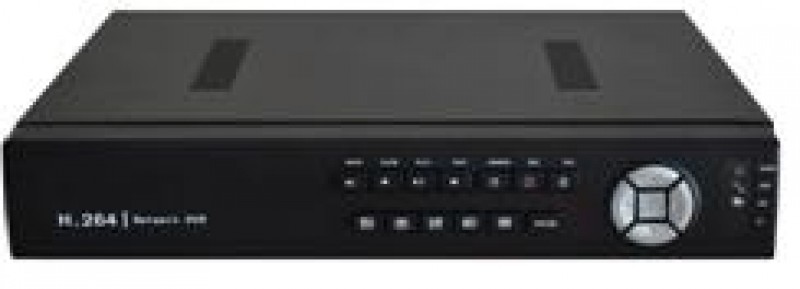

Campro, CB-SDR-9016iG 16CH DVR

Main processor:  Industrial grade embedded micro controller chip Huawei HIS chipset Hi3521

Operating system : Embedded LINUX operating system

System resource :Multi-channel real-time recording synchronously, multi-channel real-time playback,

multi-channel multi-user network operation, USB back up

Operation interface: 16 bit real color GUI interface support mouse operation

Video standard : PAL（625 lines，50fps）；NTSC（525lines，60fps）

Image encode : H.264 (High profile)

Monitor quality:  Monitor：D1；VGA：1080P ；HDMI：1080P

Playback quality:  Max support 1080P under HVR and NVR mode；Max support D1 under DVR mode

Encode capability:  16CH D1real time(DVR mode)

Decode capability:  16CH D1 real time(DVR mode)

Multi-mode video input : DVR mode :16 *D1 ,HVR mode: 8*D1+16*D1 / 8*D1+8*720P / 8*D1+(2*1080P+2*720P) / 4*D1+20*D1,

/ 4*D1+(2*1080P+10*D1) / 4*D1+(1*1080P+7*720P) /

4*D1+(1*1080P+1*720P+10*960H)

★ NVR mode: 24*D1 / 20*960H / 4*1080P / 1*1080P+8*720P /

2*1080P+4*720P+4*960H

Motion detection: Each channel can set 192（16*12）detection area；can set multi-level of flexibility (for

local analog channel only)

Audio compression:  G.711A

Record mode:  Manual alarm motion detection timing

Local Playback : Max support 16CH D1 real time playback synchronously(DVR mode)

Video search:  Time、date、event、channel search

Space occupation : Video：CIF 4~5G/day*channel， D1 16~20G/day*channel；

 audio：691.2M/day*channel

Video storage:  Local HDD, Network

Backup mode:  Network backup、USB portable HDD、USB DVD-RW

Video input: 16CH BNC

Video output:  1CH BNC，1CH VGA，1CH HDMI

Audio input/output:  16CH RCA / 1CH RCA

Alarm input/output : 8CH / 1CH

Network port : RJ45 10M/100M self-adaptive Ethernet port

PTZ control:  1 RS485；support multi kinds of PTZ Protocol

USB port : 2*USB2.0

HDD port : 2 SATA（each max support 2048G）

Wireless port : 3G、WIFI(extension via USB port)

Tour : Yes

Remote control : Yes

Power supply:  DC 12V / 4A

Dimension : 370(Length) x 285(Width) x 72(Height)
