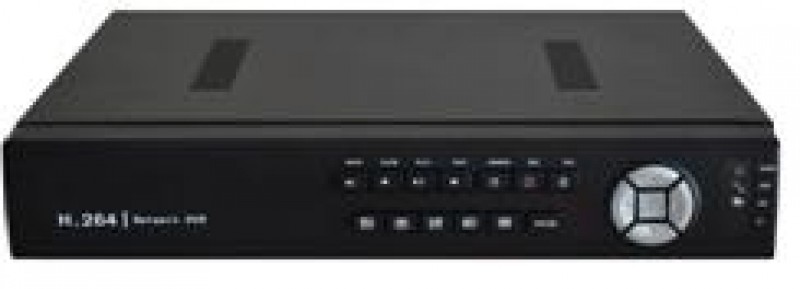

Campro,CB-SDR-9008iG 8CH DVR

Main processor : Industrial grade embedded micro controller chip Huawei HIS chipset Hi3521

Operating system : Embedded LINUX operating system

System resource:  Multi-channel real-time recording synchronously, multi-channel real-time playback,

multi-channel multi-user network operation, USB back up

Operation interface:  16 bit real color GUI interface support mouse operation

Display screen: 1/4/8/9 screen

Image encode:  H.264 (High profile)

Playback quality: Max support 1080P under HVR and NVR mode

Encode capability : 8CH D1 real time(DVR mode)

Decode capability : 8CH D1 real time(DVR mode)

Multi-mode video input: DVR mode:8*D1  HVR mode:4*D1+(1*1080P+1*720P)  NVR mode:16*D1 /               2*720P / 2*1080P / 1*720P+1*1080P+6*960H / 8*720P

Audio compression : G.711A

Local Playback: 1-8ch playback synchronously; Under the mode of DVR,Max support 8CH D1 real time playback synchronously

Video storage : Local HDD, Network

Backup mode : Network backup、USB portable HDD、USB DVD-RW

Video input : 8CH BNC

Video output:  1CH BNC，

Audio input/output:  8CH RCA / 1CH RCA

Alarm input/output : 8CH / 1CH

Network port : RJ45 10M/100M self-adaptive Ethernet port

PTZ control : 1 RS485；support multi kinds of PTZ Protocol

USB port : 2*USB2.0

HDD port : 2 SATA（each max support 2048G）

Wireless port : 3G、WIFI(extension via USB port)

Tour : Yes

Remote control : Yes

Power supply : DC 12V / 4A

Dimension : 370(Length) x 285(Width) x 72(Height)
