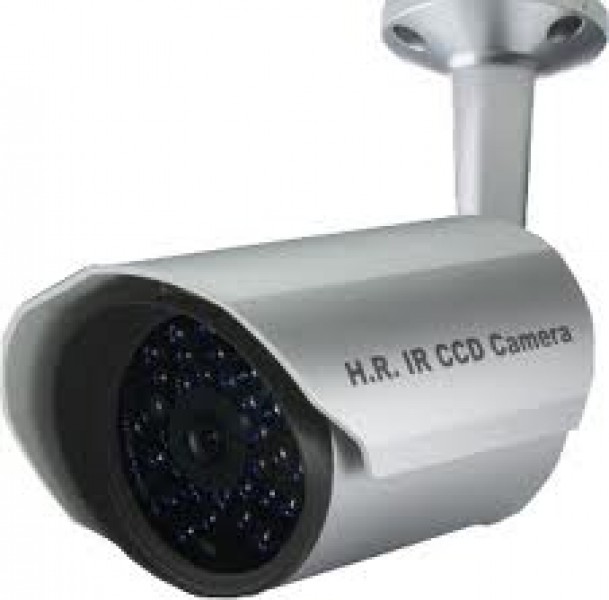

Avtech KPC 139 ZEP IR 520TVL CCTV Camera

Pick up Element: 1/3″ H.R. Color CCD image sensor

Number of Pixel: 768(H) x 494(V) <NTSC> / 752(H) x 582(V) <PAL>

Resolution: 500 TV Lines

Min. Illumination: 0.3Lux / F2.0 / 0Lux (IR ON)

IR LED: 35 Units

Effective Range: 25 Meters

S/N Rate: More than 48dB (AGC off)

Electronic Shutter: 1/60 (1/50) to 1/100,000 sec.

Lens: f3.6mm / F2.0

Lens Angle: 92.6°

IRIS Mode: AES

AGC: Auto

White Balance: ATW

IP Rating: IP67

Video Output: 1.0 Vp-p composite, 75?

Power Source (±10%): DC12V

Current Consumption (±10%): 90mA (IR OFF) / 340mA (IR ON)

Dimensions (mm): 183.69(L) x 85.24(W) x 150(H)

Weight (gw): 430

Country of Origin: Taiwan
