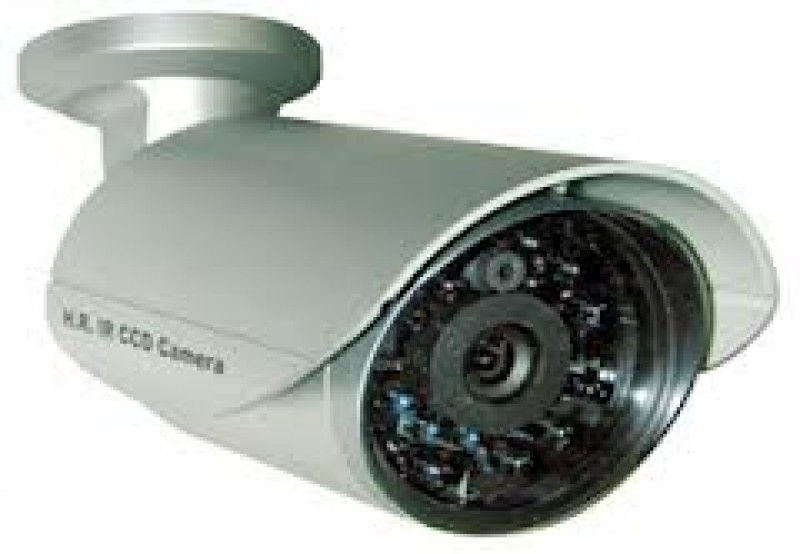

Avtech,KPC-138 ZEP IR 520TVL CCTV Camera

Pick up Element: 1/3″ H.R. color CCD image sensor

Number of Pixel: 771(H) x 492(V) <NTSC> / 753(H) x 582(V) <PAL>

Resolution: 520 TV lines

Min. Illumination: 0.1Lux / F2.0, 0Lux (IR ON)

IR LED: 21 units

Effective Range: Up to 15 Meters

S/N Ratio: More than 48dB (AGC off)

Electronic Shutter: 1/60 (1/50) to 1/100,000 sec.

Lens: f3.6mm / F2.0

Lens Angle: 92.6°

Iris Mode: AES

White Balance: ATW

Video Output: 1.0 Vp-p composite, 75Ω

Power Source (±10%): DC12V

Current Consumption (±10%): 90mA (IR OFF), 280mA (IR ON)

Dimensions (mm): 133(L) x 74(W) x 94(H)

IP Rating: IP67

***** Free Service: 1 Year

**** Installation Facility.....

~~ Home Delivery Facility ~~

=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=

**** Expert Technical Hand...

**** 24x7 Support Team...

**** Granted After Sales Service...

**** Quality Assured...

**** Service also outside of the city...

###########################################

TRIMATRIK MULTIMEDIA

Corporate Office: House#07(2nd Floor), Road#20/B, Sector#04, Uttara, Dhaka-1230.

Branch 1: Shop#54, 1st Floor, Syed Grand Centre, Sector#7, Uttara, Dhaka-1230.

Branch 2: Shop#05, 3rd Floor, HM Plaza, Sector#03, Uttara, Dhaka-1230.

Hotline: 01193194432, 01193194433, 01193194428, 01193194429

E-mail: [email protected], [email protected]

Web: www.trimatrikbd.com
